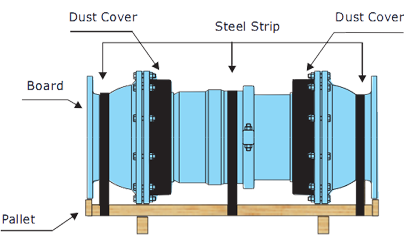

 To prevent the pipe from the effect of contraction, movement and bending on the process of delivery, it should be placed on pallet and fixed with
steel strips.
Meanwhile to protect the coating of pipe, it should be cover with wooden board on the both flanges.
|
|
| |
|
|
 |

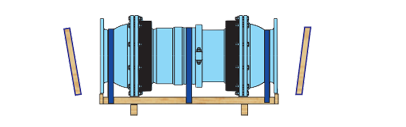

Remove the wooden covers from the ends of Flexible Pipe Joint. |
 |
 |

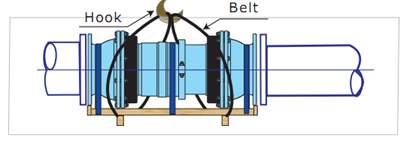

Assembled the Flexible Pipe Joint with the flange ends of pipe together.(Attention Don`t remove the steel strips and wooden pallets during assembly) |
 |
 |

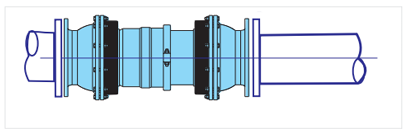

Remove the steel strips and wooden pallets. |
 |
| |
Remark：
1. PE plastic bushings prevent destruction in laying the remaining part to be folded on top.
2. The PE plastic bushing unless buried in the ground, you do not need to install
in the upper part of the ground using the PE plastic bushing. |
|
|
 |
|
|
| |
|
|
